Understanding the Butterfly Effect in Half-Cell Modules

By October 27, 2023November 22nd, 2023No Comments

With the arrival of half-cell modules, a new phenomenon called the butterfly or mirroring effect has arisen.
But what is this so-called butterfly or mirroring effect, and what causes it? And more importantly, can you prevent it from happening?

Let’s have a look!

But first things first, what are half-cell modules?

Half-cell modules contain solar cells that are cut in half, improving module performance and longevity.

Traditionally, a solar module usually has 60 and 72 cells, while half-cell modules have 120 and 144 cells. So, halving solar cells increases efficiency and reduces resistive losses.

Image of a regular solar module
Regular Module Structure

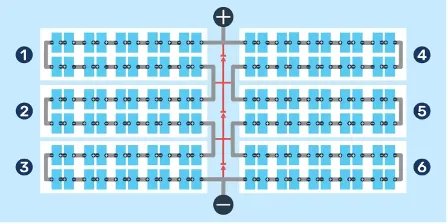

image of a half-cell solar module
Half-Cell Module Structure

Half-cell modules are advantageous over conventional solar panels because they have better blockage tolerance. So if one or more cells in a substring are blocked for any reason, such as shadowing, vegetation, soiling, or bird dropping, the other substring in parallel can still generate power. This attribute allows half-cut cells to keep producing more power even when a portion of the panel is partially shaded. This advantage is particularly significant in urban areas where buildings, trees, and other structures can cause shading.

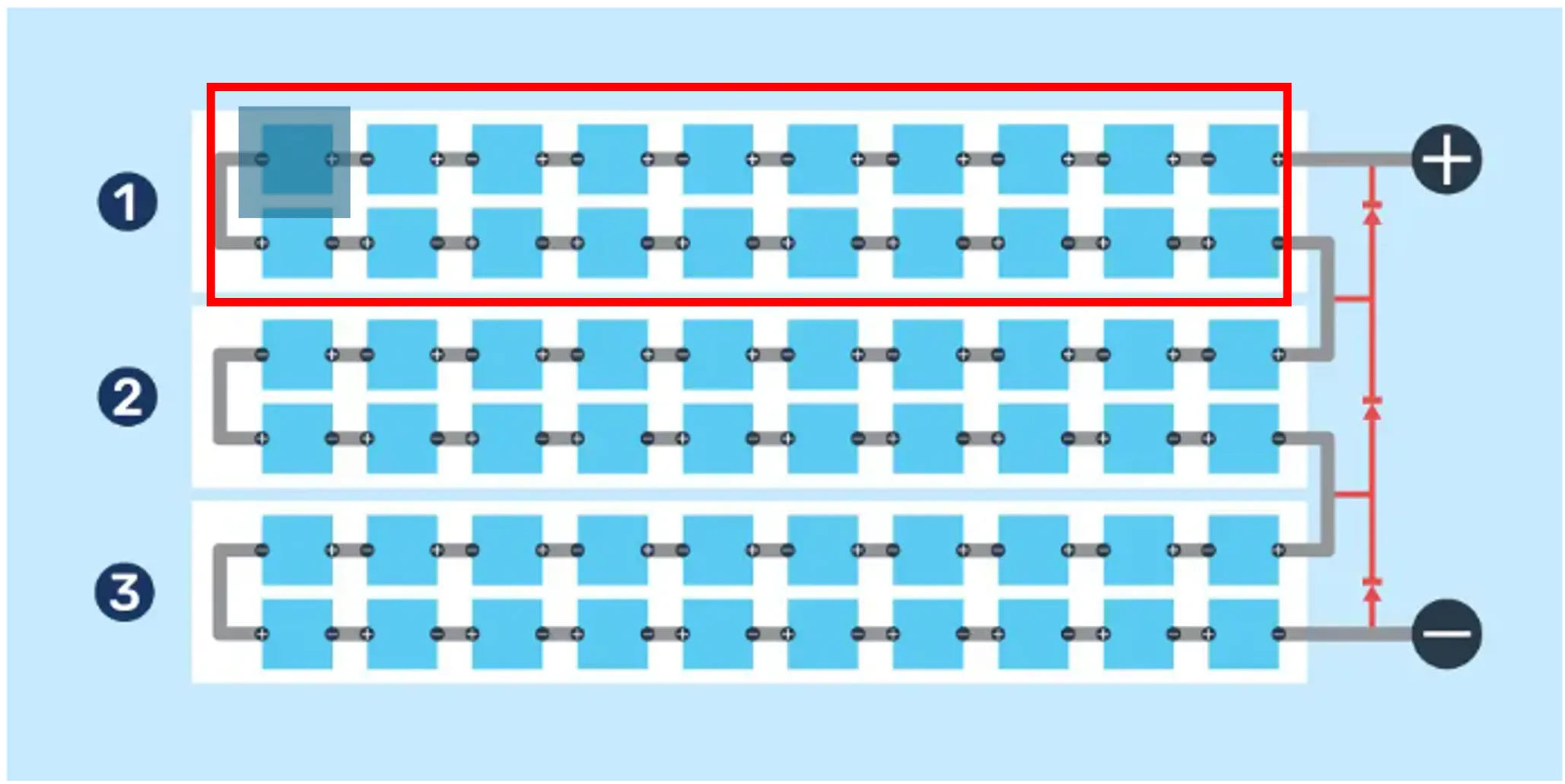

On this image of a regular module, the whole substring which 1/3 of the module is blocked
When there is an obstruction or shadowing on one or more cells in a substring of a regular module, only 2/3 of the module is producing (67% efficiency).

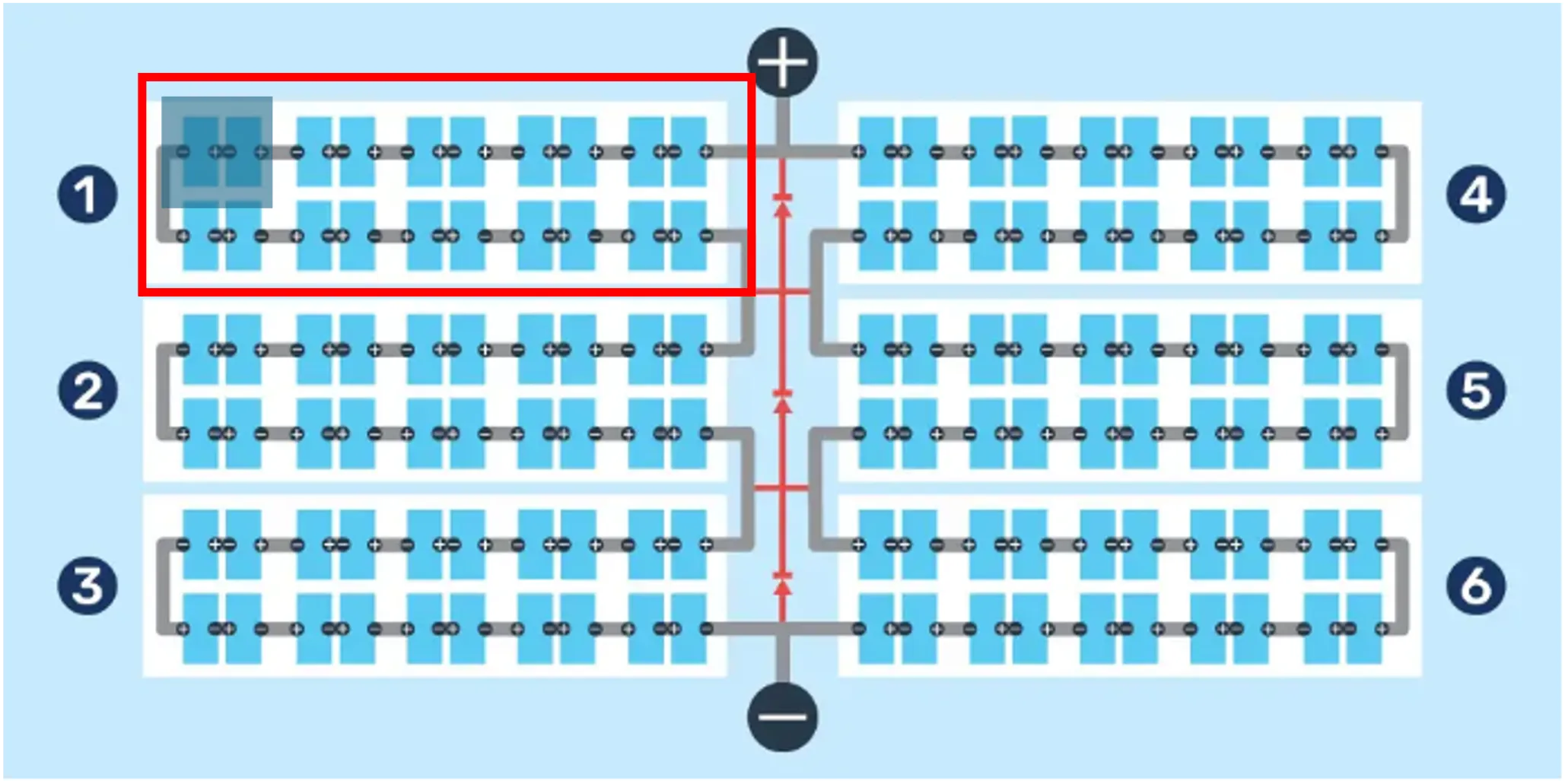

On a half cell module ony 1/6 of the module is blocked
When there is an obstruction or shadowing on one or more cells in a substring of a half-cell module, 5/6 of the module is still producing (83% efficiency).

What is the butterfly or mirroring effect?

When there is a partial blockage due to shadowing, vegetation, soiling, dropping, or any other obstruction, or a defect on one or more cells on one half of the module, it can cause a reflection or mirroring effect on the other half of the module, even if there is no defect on that part. This reflection or mirroring makes it look like the performance of the entire module is affected by a problem that only occurs in one half.

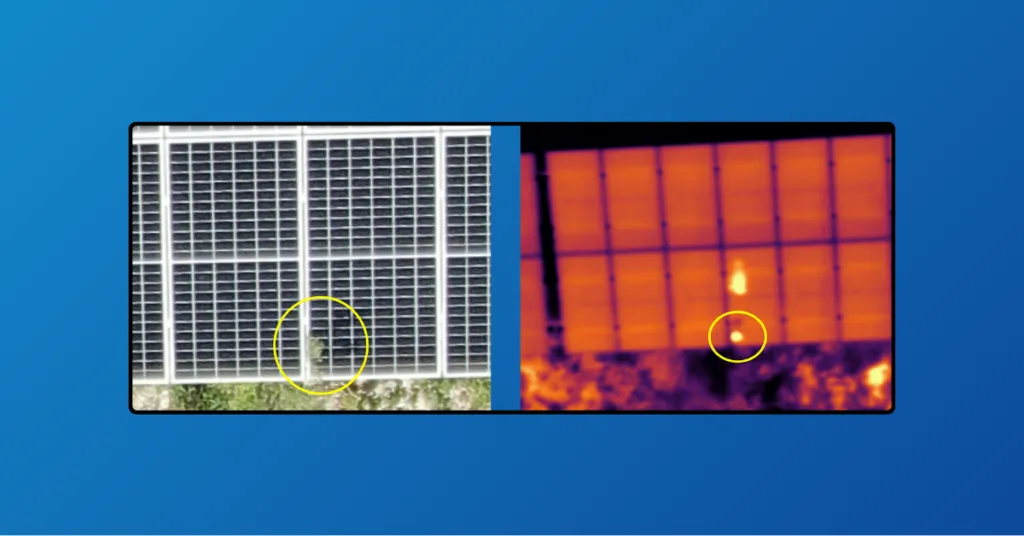

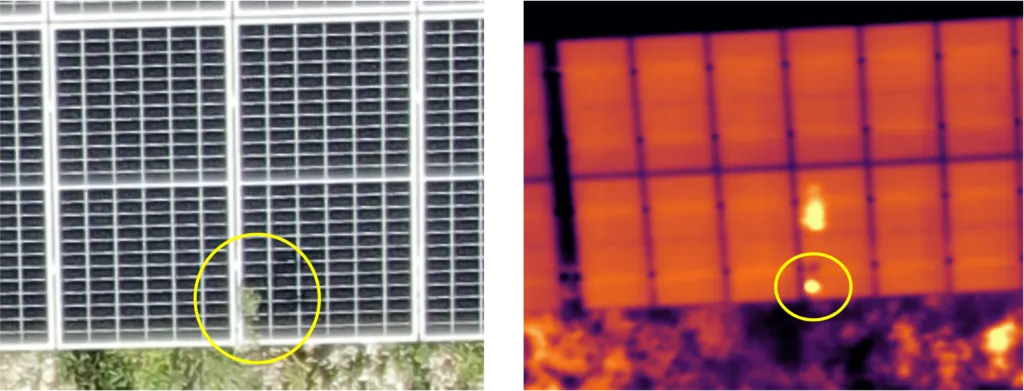

Image of a bush obstructing a solar module and the butterfly effect that it causes

What causes this effect?

When two substrings are connected in parallel, voltage mismatch, and amperage imbalance can occur between them. If one substring has a partial blockage or defect, it can cause a drop in operating voltage and amperage. According to the primary electrical connection rule, parallel connections should have equal voltage, and serial connections should have equal amperage.

Therefore, a drop in the operating voltage on one substring causes the operating voltage change on the other substring connected in parallel, and the amperage must also be balanced.

As a result, even a healthy substring can show hotspots (usually appearing as a patchwork pattern) due to this voltage mismatch/amperage imbalance.

Can you prevent a butterfly or mirroring effect?

The answer to that question is not straightforward, as the effect is not considered an anomaly.
Therefore, regular cleaning and maintenance routines will go a long way in preventing anomalies such as hotspots that can result in a butterfly/mirroring effect. It is also essential to perform thermal inspections to detect anomalies early on to keep your solar site operating at maximum output.
